DR-106.NGT.5/6.53.М2

Description

PDM DR-106.NGT.5/6.53.M2 is a new universal hydraulic downhole motor used for:

  • drilling of oil and gas wells with 120.6 – 149.2 mm bits,
  • well reconstruction by sidetracking with rock bits, PDC bits, including bicentric ones;
  • well workover operations.

An adjustable bent sub is placed between bearing section and power section. The adjustment range is between 0° and 2° or between 0° and 3°.

Bearing section has axial multi-row rolling bearing and radial hard alloy bearings. Due to a very short shoulder up to the point of axes misalignment (only 1214 mm) drillers can:

  • perform tripping without significant pressing of a bit to internal walls in the production string;
  • perform sidetracking of complex profile where it is required to alternate deviated intervals of more than 5°/10 m built rate and stabilization intervals with rotation of a drill string without the assembly tripping-out to replace the bend angle.
  • minimize risk of leaving the motor parts in the well, as all the threads are screwed applying Loctite glue, and each motor is completed with safety sub.
  • do a large volume of work with one motor (it is especially important for hard-to-reach regions) as the overhaul life reaches approximately 200 hrs.
Technical and power
specifications

Technical specification

Housing OD, mm 105/110
Power section lobe configuration 5/6
PDM length, mm 7 485
Length of stator rubber lining, mm 5 320
Length of bearing section up to a curvature point, mm 1 214
Diameter of bits used, mm 120,6-149,2
Connecting thread to drill pipes З-86
Connecting thread to bits З-76
Maximum density of drilling mud, g/cm3 1,6
Allowed axial load, kN 80
Weight, kg 386


Power specification

Working fluid flow rate, l/s 6-12
Output shaft rotation speed:
- in no-load conditions, RPM 161-321
Torque at maximum power, kN*m 3,25
Pressure drop:
- at maximum power, MPa 8
Power, kW 99

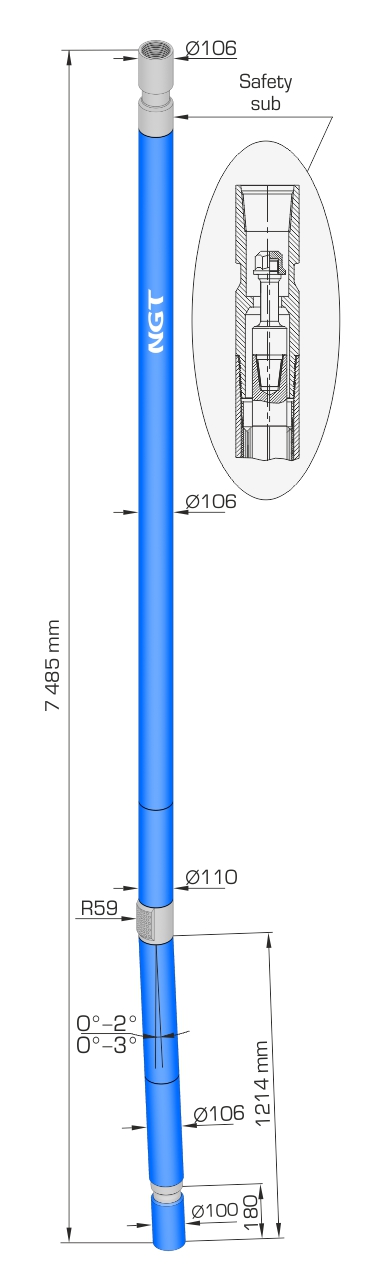

Outline drawing

Comparison
of specifications
Parameter
Technical specification:
Housing OD, mm
Power section lobe configuration
PDM length, mm
Length of stator rubber lining, mm
Length of bearing section up to a curvature point, mm
Diameter of bits used, mm
Connecting thread to drill pipes
Connecting thread to bits
Maximum density of drilling mud, g/cm3
Allowed axial load, kN
Weight, kg
Power specification:
Working fluid flow rate, l/s
Output shaft rotation speed:
- in no-load conditions, RPM
Torque at maximum power, kN*m
Pressure drop:
- at maximum power, MРa
Power, kW
DR-106.NGT.5/6.53.M1 DR-106.NGT.7/8.30.M1 DR-106.NGT.5/6.53.M2 DR-106.NGT.7/8.30.M2

105/110 106/110 105/110 106/110
5/6 7/8 5/6 7/8
7 154 4 854 7 485 5 185
5 320 3 000 5 320 3 000
883 883 1 214 1 214
120,6-149,2 120,6-149,2 120,6-149,2 120,6-149,2
З-86 З-86 З-86 З-86
З-76 З-76 З-76 З-76
1,6 1,6 1,6 1,6
80 80 80 80
369 250 386 267

6-12 6-12 6-12 6-12

161-321 96-192 161-321 96-192
3,25 2,3-3,5 3,25 2,3-3,5

8 5-10 8 5-10
99 53 99 53
