DR-240.NGT.3/4.63.М1

Description

PDM DR-240.NGT.3/4.63.М1 is a new universal hydraulic downhole motors used for drilling of oil and gas wells with rock and PDC bits of 295.3 – 374.6 mm diameter.

An adjustable bent sub is placed between bearing section and power section. The adjustment range is between 0° and 2° or between 0° and 3°.

The bearing section has multi-row thrust ball bearing of enhanced load-carrying capacity and radial hard alloy bearings.

PDMs are completed with imported extended power sections with enhanced operation life. The overhaul life reaches approximately 200 hrs.

PDMs can be completed with replaceable centralizer:


Centralizer
Technical and power
specifications

Technical specification

Housing OD, mm 240/244
Power section lobe configuration 3/4
PDM length, mm 10 520
Length of stator rubber lining, mm 6 300
Length of bearing section up to a curvature point, mm 2 478
Diameter of bits used, mm 295,3-444,5
Connecting thread to drill pipes З-171
Connecting thread to bits З-152
Maximum density of drilling mud, g/cm3 1,9
Allowed axial load, kN 400
Weight, kg 2 784


Power specification

Working fluid flow rate, l/s 22,4-44,8
Output shaft rotation speed:
- in no-load conditions, RPM 75-150
Torque at maximum power, kN*m 14,8
Pressure drop:
- at maximum power, MPa 6,8
Power, kW 179

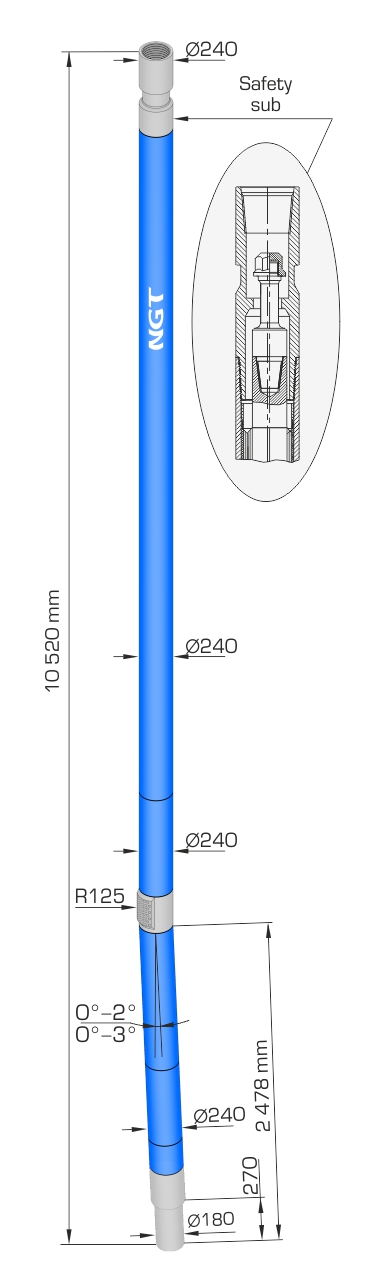

Outline drawing

Comparison
of specifications
Parameter
Technical specification:
Housing OD, mm
Power section lobe configuration
PDM length, mm
Length of stator rubber lining, mm
Length of bearing section up to a curvature point, mm
Diameter of bits used, mm
Connecting thread to drill pipes
Connecting thread to bits
Maximum density of drilling mud, g/cm3
Allowed axial load, kN
Weight, kg
Power specification:
Working fluid flow rate, l/s
Output shaft rotation speed:
- in no-load conditions, RPM
Torque at maximum power, kN*m
Pressure drop:
- at maximum power, MРa
Power, kW

DR-240.NGT.3/4.62.M1

DR-240.NGT.3/4.63.М1

DR-240.NGT.5/6.63.М1


240/244 240/244 240/244
3/4 3/4 5/6
10 432 10 520 10 520

6 200

6 300

6 300

2 478 2 478 2 478
295,3-444,5 295,3-444,5 295,3-444,5
З-171 З-171 З-171
З-152 З-152 З-152
1,9 1,9 1,9
400 400 400
2 761 2 784 2 784

22-45 22,4-44,8 27,5-45

75-151  75-150 64-129
15,3 14,8 19,3

6,8 6,8 6,8
179 179 234
