Telemetry

Our company in cooperation with the partners can offer you engineering and technological supervision services of drilling directional and horizontal well of different constructions using modern telemetric systems with hydraulic channel, including gamma-ray logging while drilling.

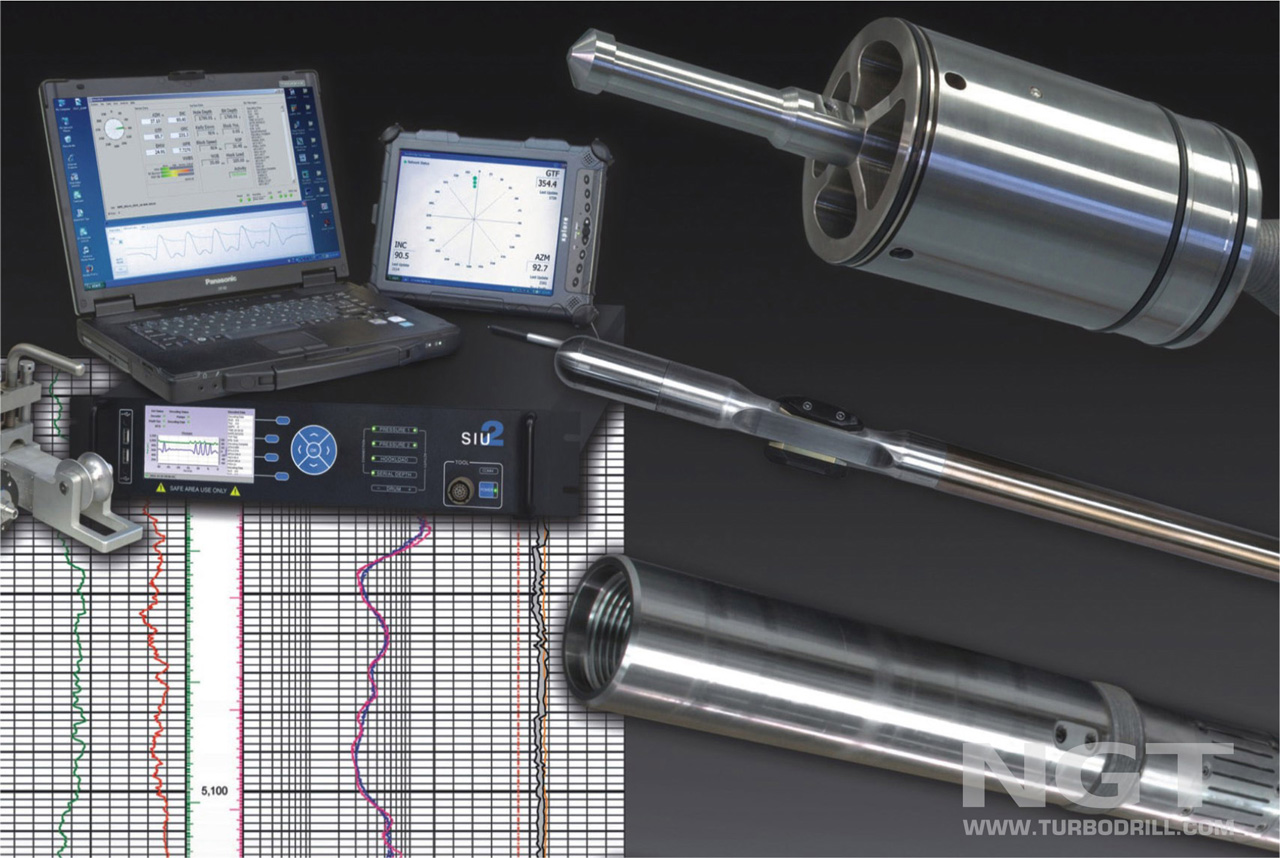

We are using «ZTLS-U» or «APS Technology» hydraulic channel telemetric systems, which contain pulsators for signal transmission from the hardware at the bottom to the top receiver by drilling mud. Telemetric system provides direction control and lithologic partition of the rocks while drilling.

The equipment is designed to operate in the boreholes of 120 – 295mm ID. Telemetric system operates in mud-filled boreholes by means of positive pressure impulses to transmit the following data to the surface: azimuth angle, zenith angle, temperature of environment, magnetic field status, gravitational deviation, magnetic deviation, marking azimuth (tool orientation) with precision from ±5° to ±1°.
