S-178.NGT.M15

Description

Bearing section S-178.NGT.M15 is a new short bearing section featuring enhanced operation life.

The bearing section is used in PDM power sections of 172 – 178 mm diameter and for drilling oil and gas wells with 212,5 - 250,8 mm bits.

Axial bearing of bearing section is a multi-row thrust ball bearing with toroidal raceways, radial bearings of bearing section are steel sleeves, having the friction surfaces reinforced with hard-alloy plates.

The bearing section is furnished with drive shaft with two joints to connect to the power section rotor. The bearing section design has adjustable bent sub. The adjustment range is from 0° up to 2° or from 0° up to 3°.

Meeting customers' requirements, the bearing section can be produced with the connecting threads for specific power section.

Top sub (safety sub), also replaceable centralizer and calibrator sub are available with the bearing section to connect the power section to drill pipes:

Calibrator sub

Centralizer

Technical specification

Техническая характеристика шпинделя

Housing OD, mm	178
Bearing section length, mm	2 546
Bearing section length to curvature plane, mm	1 856
Range of angle adjuster change, degree	0-2 or 0-3
Connecting thread to bit	З-117
Torque transmitted, max. kN*m	24
Tolerance of axial loading, kN	250
Overhaul period, hour	280

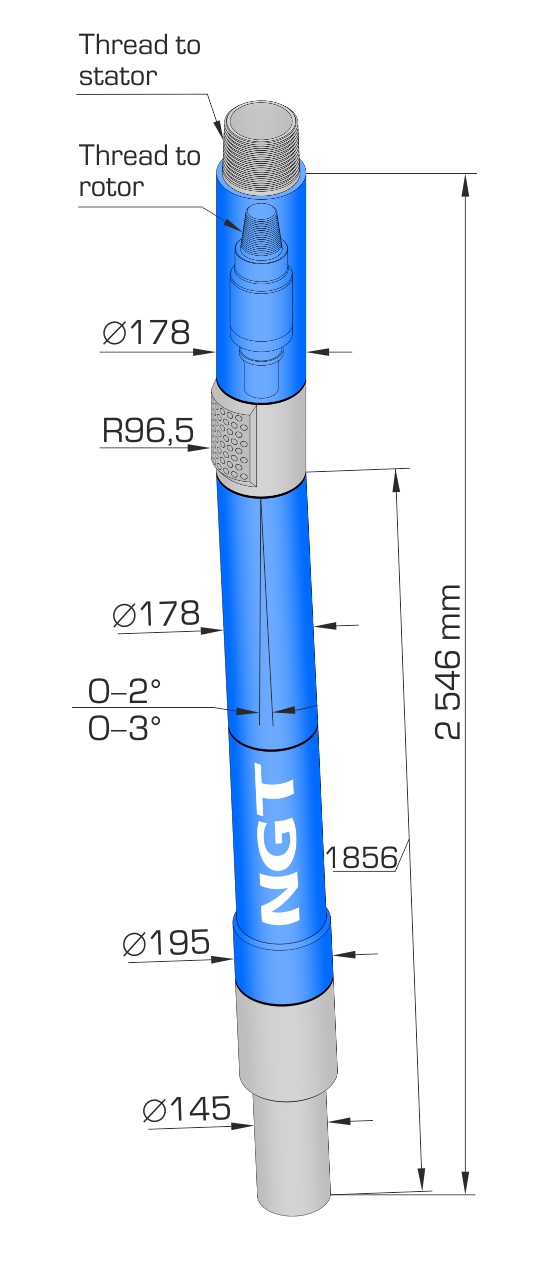

Outline drawing

Comparison
of specifications

Parameter

Housing OD, mm

Bearing section length, mm

Bearing section length to curvature plane, mm

Range of angle adjuster change, degree

Connecting thread to bit

Torque transmitted, max. kN*m

Tolerance of axial loading, kN

Overhaul period, hour

S-178.NGT.M12 S-178.NGT.M15	S-178.NGT.M16	S-178.NGT.M23
178	178	178
2 546	2 587	2 546
1 856	1 897	1 856
0-2 or 0-3	0-2 or 0-3	0-2 or 0-3
З-117	З-117	З-117
24	24	24
250	250	250
280	280	350

Download

	Description and specification of S-178.NGT.M15 (0.1 MB, pdf)
	Performance of 13 bearing sections run in the Tatarstan Republic (0.1 MB, pdf)
