DR-178.NGT.7/8.52.M15

Description

PDM DR-178.NGT.7/8.52.M15 is a new universal hydraulic downhole motor used for drilling of oil and gas wells with rock and PDC bits of 212.7 - 250.8 mm diameter.

An adjustable bent sub is placed between bearing section and power section. The adjustment range is between 0° and 2° or between 0° and 3°.

The bearing section has multi-row thrust ball bearing of enhanced load-carrying capacity and radial hard alloy bearings.

PDMs are completed with imported extended power sections with enhanced operation life. Due to very short shoulder up to the point of axes misalignment (only 1856 mm) drillers can:

perform tripping without significant pressing of a bit to internal walls in the production string;
perform sidetracking of complex profile where it is required to alternate deviated intervals of more than 5°/10 m built rate and stabilization intervals with rotation of a drill string without the assembly tripping-out to replace the bend angle.
minimize risk of leaving the motor parts in the well, as all the threads are screwed applying Loctite glue, and each motor is completed with safety sub.
do a large volume of work with one motor (it is especially important for hard-to-reach regions) as the overhaul life reaches approximately 280 hrs.

PDMs can be completed with replaceable centralizer and calibrator sub:

Calibrator sub

Centralizer

Technical and power specifications

Technical specification

Housing OD, mm	178/195
Power section lobe configuration	7/8
PDM length, mm	8 511
Length of stator rubber lining, mm	5 210
Length of bearing section up to a curvature point, mm	1 856
Diameter of bits used, mm	212,7-250,8
Connecting thread to drill pipes	З-133/147
Connecting thread to bits	З-117
Maximum density of drilling mud, g/cm³	1,9
Allowed axial load, kN	250
Weight, kg	1 239

Power specification

Working fluid flow rate, l/s	25-40
Output shaft rotation speed:
- in no-load conditions, RPM	100-160
Torque at maximum power, kN*m	13,4
Pressure drop:
- at maximum power, MPa	13
Power, kW	164

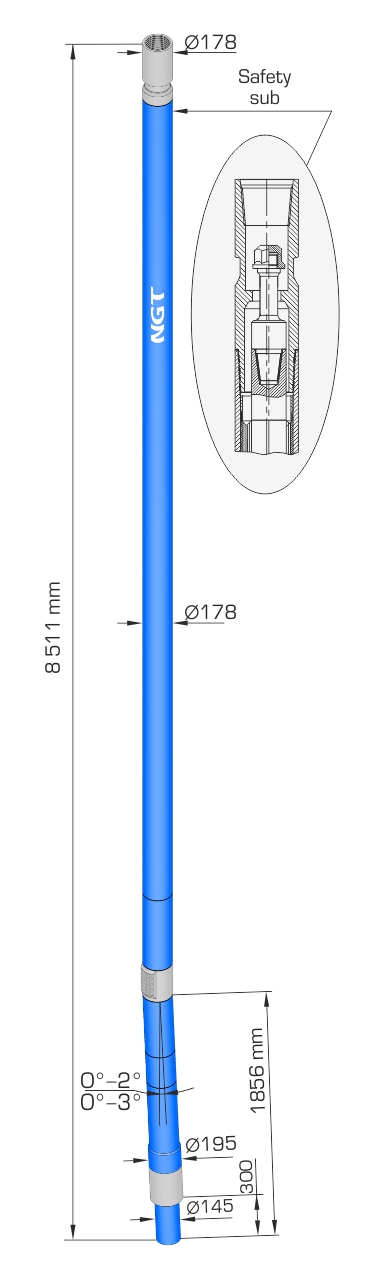

Outline drawing

Comparison of specifications

Parameter

Technical specification:

Housing OD, mm

Power section lobe configuration

PDM length, mm

Length of stator rubber lining, mm

Length of bearing section up to a curvature point, mm

Diameter of bits used, mm

Connecting thread to drill pipes

Connecting thread to bits

Maximum density of drilling mud, g/cm³

Allowed axial load, kN

Weight, kg

Power specification:

Working fluid flow rate, l/s

Output shaft rotation speed:

- in no-load conditions, RPM

Torque at maximum power, kN*m

Pressure drop:

- at maximum power, MРa

Power, kW

DR-178.NGT.4/5.54.M15 DR-178.NGT.4/5.54.M23	DR-178.NGT.7/8.52.M15 DR-178.NGT.7/8.52.M23	DR-178.NGT.7/8.55.M15 DR-178.NGT.7/8.55.M23	DR-178.NGT.7/8.62.M15 DR-178.NGT.7/8.62.M23	DR-178.NGT.7/8.63.M15 DR-178.NGT.7/8.63.M23	DR-178.NGT.7/8.64.M15 DR-178.NGT.7/8.64.M23

178/195	178/195	178/195	178/195	178/195	178/195
4/5	7/8	7/8	7/8	7/8	7/8
8 751	8 511	8 796	9 521	9 671	9 671
5 400	5 210	5 500	6 200	6 360	6 400
1 856	1 856	1 856	1 856	1 856	1 856
212,7-250,8	212,7-250,8	212,7-250,8	212,7-250,8	212,7-250,8	212,7-250,8
З-133/147	З-133/147	З-133/147	З-133/147	З-133/147	З-133/147
З-117	З-117	З-117	З-117	З-117	З-117
1,9	1,9	1,9	1,9	1,9	1,9
250	250	250	250	250	250
1 273	1 239	1 279	1 385	1 309	1 309

30	25-40	30	30	20-35	30

248	100-160	138	118	102-179	170
10	13,4	15	15	12,6	14

13	13	12	11	13	13
230	164	161	157	213	211

Download

	Description and specification of DR-178.NGT.7/8.52.M15 (0.2 MB, pdf)
	28 PDM's performance in the Kazakhstan Republic (0.1 MB, pdf)
