T2-127.NGT.M1

Description

Turbodrill T2-127.NGT.M1 has high speed of rotation and is used for drilling of wells with combination and impregnated bits of small diameter.

The turbodrill contains two turbine sections and bearing section. The turbine sections incorporate the turbine of high speed of rotation and low pressure drop. The turbine efficiency constitutes 68-70% at max. power. The turbodrill bearing section operates in mud and has axial sliding bearing, the operating surfaces made out of synthetic diamond. This allows reaching high power characteristics and overhaul operation life (not less than 300 hours).

Technical and power specifications

Turbodrill specification

Housing OD, mm	122
OD of threaded connections, mm	127
Diameters of bits used, mm	146,0-171,4
Turbodrill length, mm	11 651
Length of top turbine section, mm	5 196
Length of bottom turbine section, mm	4 947
Length of bearing section, mm	1 508
Connecting thread to drill pipes	З-88
Connecting thread to bit	З-88
Max. density of mud, g/cm³	1,9
Max. axial load, kN	50
Weight, kg	750
Max. temperature in well, °C	250

Turbodrill power characteristic

Quantity of turbine sections, pc.	2
Mud flow rate, l/sec	14-16
Mud density, g/cm³	1,0
Stall torque, N*m	1100-1450
Speed of rotation at operating condition, min^-1	1151-1316
Pressure drop, MPa	6,3-8,2
Max. power, kW	62-93

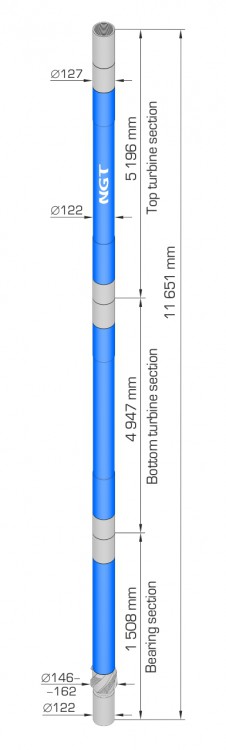

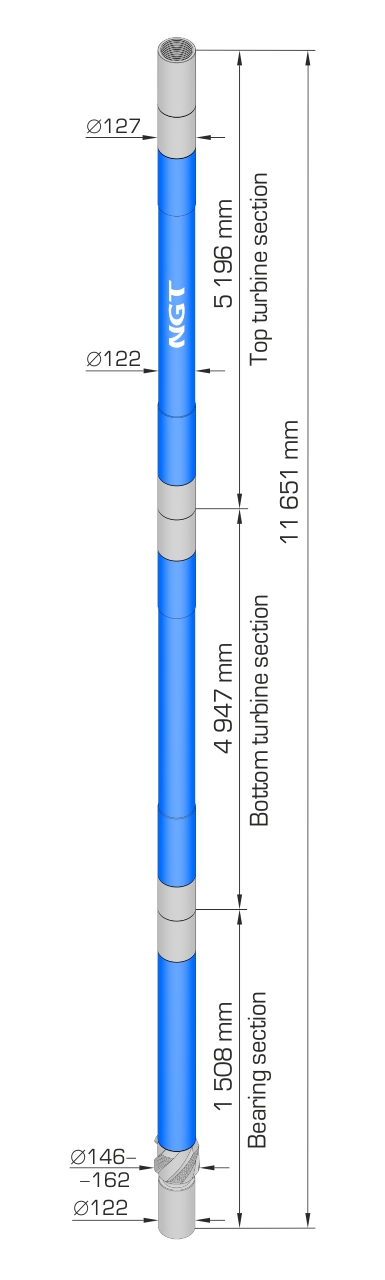

Outline drawing

Comparison of specifications

Code		T2-127.NGT.M1	T2-127.NGT.M2
Turbodrill specification:
Dia. of bits used, mm		146,0-171,4	146,0-171,4
Length, mm		11 651	11 651
Connecting thread	to drill pipes	З-88	З-88
	to bit	З-88	З-88
Rage of bend angles, deg		-	-
Weight, kg		750	750
Turbodrill power characteristic:
Quantity of sections, pcs	Turbine section	2	2
	Bearing section	1	1
Quantity of turbine stages in turbodrill, psc		220	220
Mud flow rate, l/sec		14-16	10
Stall torque, N*m		1100-1450	988
Speed of rotation at operating condition, min^-1		1151-1316	1236
Pressure drop, MPa		6,3-8,2	9,2
Max. power, kW		63-93	54

Note: turbodrill power characteristics are given at mud density of 1.0 g/cm³

Download

Description and specification of T2-127.NGT.M1 (0.2 MB, pdf)
