TBS1-178.NGT.M1 and TBS1-178.NGT.M2

Description

Turbodrills TBS1-178.NGT.M1 and TBS1-178.NGT.M2 are new universal turbodrill-whipstocks with an ultra-short arm to the point of axes curvature.

The turbodrill is available for drilling with impregnated and PDC bits in 212,7- 220,7 mm dia.

Turbodrill contains turbine section and bearing section as whipstock with angle adjuster. Angle adjuster is available with the following bend angles : 0°00', 0°13', 0°25', 0°37', 0°49', 1°00', 1°11', 1°20', 1°29', 1°37', 1°44', 1°50', 1°54', 2°00'. Flexible shaft of titanium alloy is used for torque transmission.

Highly efficient turbines of M1 and M2 types are used in turbine section of turbodrills. Both turbines are made of stainless steel by precision casting method. The turbine efficiency constitutes 68-70% at max. power.

The turbodrill bearing sections have axial sliding bearing, the operating surfaces made of synthetic diamond. This allows obtaining high power characteristics and increased overhaul life.

Technical and power specifications

Turbodrill specification

Code of turbodrill	TBS1-178.NGT.M1	TBS1-178.NGT.M2
OD of threaded connections, mm	178
Diameters of bits used, mm	212,7-215,9
Turbodrill length, mm	10 964	10 964
Length of turbine section, mm	7 332	7 332
Bearing section length to curvature plane, mm	1 480	1 480
Connecting thread to drill pipes	З-147 (З-133)
Connecting thread to bit	З-117
Max. density of mud, g/cm³	1,9
Max. axial load, kN	150
Weight, kg	2 100	2 100
Max. temperature in well, °C	250

Turbodrill power characteristic

Quantity of turbine sections, pc.	1	1
Mud flow rate, l/sec	32-36	25-28
Mud density, g/cm³	1,0	1,0
Stall torque, N*m	2843-3599	2254-2827
Speed of rotation at operating condition, min^-1	827-931	926-1037
Pressure drop, MРa	5,8-7,4	6,4-8,0
Max. power, kW	107-152	100-140

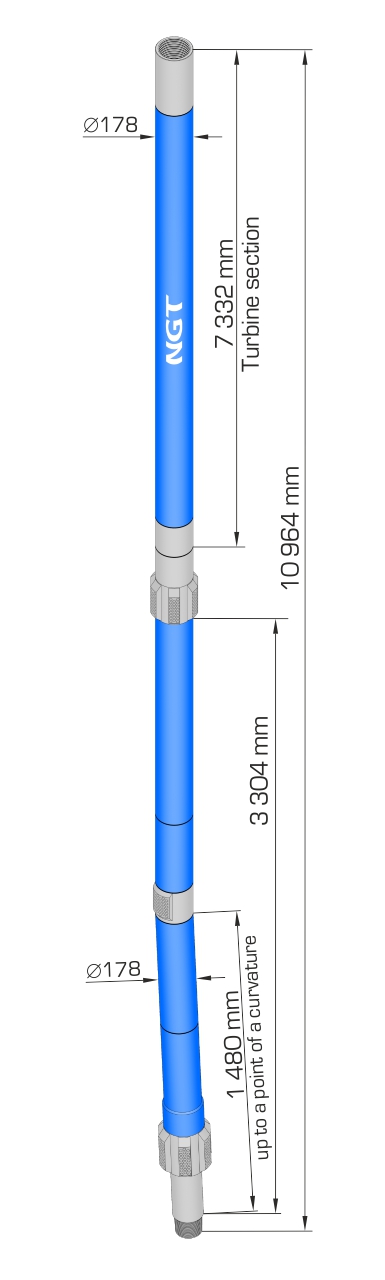

Outline drawing

Comparison of specifications

Параметр
Technical specification:
Dia. of bits used, mm
Length, mm
Connecting thread	to drill pipes
	to bit
Rage of bend angles, deg
Weight, kg
Power specification:
Quantity of turbine sections, pcs	Turbine
	Bearing section
Quantity of turbine stages in turbodrill, psc
Mud flow rate, l/sec
Speed of rotation at operating condition, min-1
Stall torque, N*m
Pressure drop, MPa
Max. power, kW

T1-178.NGT.M1	T2-178.NGT.M1	T1-178.NGT.M2	T2-178.NGT.M2	TBS1-178.NGT.M1	TBS1-178.NGT.M2

212,7-215,9	212,7-215,9	212,7-215,9	212,7-215,9	212,7-215,9	212,7-215,9
9 332	13 004	9 332	13 004	10 964	10 964
З-147	З-147	З-147	З-147	З-147	З-147
З-117	З-117	З-117	З-117	З-117	З-117
-	-	-	-	-	-
2 100	2 500	2100	2 500	2100	2 100

1	2	1	2	1	1
1	1	1	1	1	1
170	240	150	210	170	150
32-36	25-32	25-28	22-25	32-36	25-28
2843-3599	2450-4014	2254-2827	2443-3155	2843-3599	2254-2827
827-931	646-827	926-1037	815-926	827-931	926-1037
5,8-7,4	5,0-8,2	6,4-8,0	6,9-8,9	5,8-7,4	6,4-8,0
107-152	72-151	100-140	95-140	107-152	100-140

Note: turbodrill power characteristics are given at mud density of 1.0 g/cm³

Download

Description and specification of TBS1-178.NGT.M1 and TBS1-178.NGT.M2 (0.2 MB, pdf)
